What is the difference between a three-dimensional parking lot and an intelligent parking lot?

The three-dimensional parking lot is a mechanical three-dimensional garage, like the kind of mechanical, intelligent parking is to control the car parked. These two are different concepts. It can be said that the three-dimensional parking lot may also be the intelligent parking lot.

The biggest advantage of the three-dimensional parking lot is that it can make full use of urban space, known as the urban space "energy".
1. Each group can be designed for three to ten. That is, each group can be designed for 5 parking spaces to 19 parking spaces.
2. The upper deck of the parking space to do the movements, in the vehicle when the vehicle plate can be reduced to the ground floor.
3. The lower deck (floor) parking spaces are only traversed, but each group must have a traversing space to facilitate the use of upper parking spaces.
4. The front of the equipment must be a lane. The driver will park the vehicle from the lane into the platform board.

The intelligent parking garage is composed of a photoelectric sensing system and a relay through an intelligent identification card reader.
When the smart card is inserted, the relay E4 at the bottom of the smart card reader is in the 1 state to start the main program.


And then intelligent card reader by judging the four groups of different components of the photoelectric sensor, read the information on the card, in order to determine the designated parking spaces, and select the appropriate program to achieve "take" (when the parking is to take the parking board) operation , Wait for the car's access is ready and press E5, continue to "save" (when the car is the access to the parking plate) operation.

25-storey parking system with a magnetic levitation car for the fastest 30 seconds

Application of magnetic levitation technology save 2/3

The parking system is not new in Foshan, but usually, one of the most critical problems has not been solved well: the speed of the car is slow.
"From the existing parking system drive device, almost all use the motor plus wire rope or chain way. Such a drive device, the general access to the car for 120 seconds, faster in 90 seconds, the fastest is greater than 60 It is almost impossible to reduce the access time to the existing drive technology for less than 30 seconds. "The manufacturer said that the team took the lead in applying the" maglev "technology to the garage construction. The fastest only 30 seconds.

When parking the owner of the car into the car after the board, the truck will be transported to the same size of the car parking spaces, the whole process is fully automated.

The use of magnetic levitation drive technology for parking equipment, which provides a parking space and the vertical drive without rotating motor, no wire rope, and chain of the high-speed way to stop the car. Each garage is located after the first parking place is a magnetic levitation drive technology to build a three-dimensional mobile platform, the platform was stacked on both sides of the 25-floor parking with the car plate, each layer has two parking spaces, like a bed Neatly arranged. When the parking demand is received, the moving plane will quickly pick up an empty carrier board to the warehouse door waiting, until the vehicle is good, the way to move the car directly to the corresponding parking spaces.

Vertical garage use of the computer monitoring screen. Red for maintenance or occupation, gray for free.

It is reported that many of the existing parking systems, the equipment needs to rely on the rope and the chain of the first car plate to move vertically, and then move horizontally to reach the required parking spaces, and the front of the new parking system of this " Straight line "is more efficient. The parking system structure is simple, lower maintenance costs, fewer failures. "Our precision algorithm makes the parking garage more efficient, requiring only one-third of the traditional parking systems, less than 40 decibels, and less sound than the average household fan," the maker said.

Automatic door for parking system

The parking system requires a door to ensure that the car enters the garage one by one and prevents the car or pedestrian from entering without permission.

Automatic door safety factor is relatively high. Automatic door application precautions;
1, cannot be used in high temperature (50 ℃ above), too low (-20 ℃above), wet, dusty environment.

2, the door in the automatic induction state cannot be used when the activities of some activities (or wind blowing activities) in the door of the sensor head detection range, which will easily lead to automatic door movement occur.

3, automatic sensor doors cannot be installed in the wind mouth and air convection in a violent position, which is likely to cause automatic sensor door damage.

4, cannot often in the hand breaking the automatic sensor door, which will reduce the automatic sensor door life.


5, automatic sensor door is an electromechanical product, can not help but use a long time after the need to open the door trim to repair, so the automatic door machine package panel is best to use some easy to dismantle the material cover, do not seal the seal.

Xi'an DacheJia lane parking system set up 120 parking spaces

Yesterday, the government fully funded the construction of Xi'an DacheJia Lane parking system completed and commissioned, this is a six-story three-dimensional mechanical garage, a total of 120 parking spaces.

According to the city motor vehicle parking service center, deputy director of the current municipal government to invest in the construction and has been put into the parking lot has three, located in the North Road Lane three-dimensional parking garage with 112 parking spaces;There are 520 parking spaces on the ground floor of Xi'an high school playground.

In addition, DacheJia lane of the parking system is located in the Beilin District Mingcheng wall car Lane Lane West, South Gate City Government residential quarters 3 courtyard, as a single Puzzle Parking System movement, a total of six Is five, the construction scale of 120, of which 112 mechanical parking spaces, flat new energy charging parking spaces 8.

It is understood that with the DacheJia Lane parking lot completed and put into operation, will ease the parking lot around the car home to improve the static traffic within the area. At the same time, but also to explore how to solve the old city of the old community parking lot land supply and parking difficult problem of a practice, will achieve a certain economic benefits and good social benefits, the city is the use of old residential reconstruction of public parking to ease the old A typical example of parking in the city.

The vertical cycle type parking system is coming to Ji'nan!

The vertical cycle type parking system is coming to Ji'nan!
No parking, Hummer, Land Rover, big vehicles

The parking system is running, the speed reducing motor drives the transmission mechanism of traction chain vertical circulation chain operation, every certain distance of vehicles to install a bracket, the car bracket of the chain together with the cycle of movement, so as to achieve the purpose of access to the vehicle.

But each of the cages to stop into the limited space, the length of the vehicle must be less than 5.2 meters, a width of fewer than 1.85 meters, height less than 1.55 meters, the body weight is not more than 2 tons, Hummer, Land Rover, and other large SUV vehicles can enter the parking garage.

August 30th, in the four roads and weft two road intersection northeast sides, covering an area of more than 300 square meters of parking system(garage) all built, now entering the final commissioning stage.

The parking system has 5000 parking spaces and can go shopping on the nine floor

Recently, a number of careful residents of Jianye will find that the Golden Eagle world around the Ying Street and Jiangdong Middle Road and other places, is the road environment and greening of the new renovation. The Golden Eagle world commercial complex will start the business on November 18th, and the relevant departments of Jianye District have made a series of preparatory work for this purpose.

New urban landmarks in East China and throughout the country
Golden Eagle world is located in Nanjing Hexi new town should be located at the intersection of day street and Jiangdong Road, it has become an independent school of asymmetric three towers connecting building, the A tower 368 meters high, the ground at a distance of 190 meters, the air corridor will have three towers connected, the air corridor area will reach 50 thousand square meters, will be to visit customers with intense shock and amazing experience.

G • Mart flagship store

The world will build the future of the whole life of the Golden Eagle Center, a total construction area of 918 thousand square meters, the business area of 500 thousand square meters, a total investment of 10 billion yuan, the day will become a new landmark in the East region and the city.

G·TAKAYA

5000 parking spaces, parking system
Golden Eagle World is a high-end shopping center, 5A high-end commercial office buildings, five-star hotels, high-end apartments and other functions as one of the buildings.

Among them, in addition to shopping and food, will also introduce G • Mart flagship store, bookstore G, TAKAYA, children's day Park, dental beauty, pet clubs, air hot springs and another lifestyle.


The Golden Eagle world creatively on each floor to set up the air for the first time the parking system, parking area and shopping space seamless docking, 5000 berths, parking system, directly to the desired floor, even to the 9 floor, can also drive up.

China-Japan Friendship Hospital parking apron and parking system are simultaneously start using

According to reports, The helipad area of China Japan hospital is 315 square meters, the maximum load weight of 8 tons, the design can be full-size aircraft for 17 meters and below, the maximum takeoff weight of 8 tons within the whole helicopter.

After the helicopter transfer patient arrives at the apron, the stretcher cart can go straight through the corridor to the parking lot elevator, and then go through the special emergency passage to the operation room for first aid. The apron is also equipped with a professional navigation lighting system, even in the night, but also to ensure the safe landing of helicopters, enabling the apron 24 hours at any time to enable.

The opening of the helipad marks that China-Japan Friendship Hospital will become an air rescue base hospital, and the air emergency transportation system will be more convenient, standardized and internationalized. A convenient way of Medical College and CIS discipline advantage in relying on the respiratory center of the hospital, the emergency air transport system is established, a radius of 500km and beyond the range of critically ill patients can receive timely treatment.

A helicopter is landing at China-Japan Friendship Hospital in Beijing

Today, synchronized use of the China-Japan Friendship Hospital parking system.

It started construction in March this year. There are 369 parking spaces in the building. After opening, the total number of parking spaces in China and Japan Hospital has reached 520, an increase of 53% over the previous period. The import and export of vehicles imported by an original one imported two export upgrade to two imported four exports, the original card, credit card to go into the hospital for upgrading the intelligent parking system, vehicle entering without the card, export machine screen and the computer automatically displays the amount of toll booth. After the opening of the parking lot, it can relieve the traffic congestion caused by the difficult parking problem to some extent.

How many motors are required for the Puzzle Parking System with 3 layers and 7 parking spaces

The Puzzle Parking System with 3 layers and 7 parking spaces requires five lifting large motors, four small horizontal motors, PLC programming control, you can work.

The Puzzle Parking System is composed of main frame, loading platform, transmission system, control system, safety protection system and so on.

3 layers parking system

When running, the ground layer can directly access the vehicle; when the two layers of the ground are accessed, the vehicle needs to move laterally through the carrier platform corresponding to the ground layer to make empty spaces and then move up and down to the ground floor.

Similarly, when a vehicle is accessed on the ground floor, it also needs to move laterally through the carrier platform corresponding to the ground floor, so as to reach the ground level after the vacancy is lifted.

75 thousand new parking berths are expected in Kunming

The construction of parking lot requires a large amount of money and support, in February 2017 to encourage and guide social forces to actively participate in the public parking lot at the same time, investment in construction and operation of the municipal government approved the establishment of the Kunming city construction and operation of smart parking Co. Ltd, as a municipal financing platform for Kunming city public parking lot of the construction and operation of investment management.

Through the operation of the company, we can broaden the channels of investment and financing, and further strengthen the provision of government public services.

In addition, the effective way to alleviate the "parking difficulty" in cities is to develop intensive public transport, the establishment of public parking spaces, by increasing the proportion of bus travel, reducing the use of vehicles, from the source to curb and reduce parking demand.


Therefore, Kunming in the governance of "parking difficult" in the process of actively promoting "bus priority", and promote Kunming "bus city" created. At the same time, we also hope that the people will set up the concept of "environmental protection transportation", change the mode of travel, and reduce the excessive reliance on individual motor transportation, so as to reduce the parking demand of urban central area.

How many meters is the height of the basement, and a mechanical double garage can be built?

Underground double layer mechanical garage
1. Do not consider the pipeline installation space, at least 2.2 meters in height.

2. To basement intermediate layer as an example: if you consider the pipe installation space, beam and other factors, the height of 3.2-3.9 meters, this is not considered the basement top soil thickness, basement height.

double layer mechanical garage

The basement is a room in the building below the outdoor ground. Building a basement below the ground floor can improve the efficiency of the construction land. The foundations of some tall buildings are very deep and make full use of this depth to build a basement and place a parking system.

The parking lot will be built on the south side of Yulin Road, Jingmen

The total area of the parking lot is about 4000 square meters, including two 6 story mechanical parking garages, public toilets, car wash rooms and management rooms, with 236 mechanical parking spaces and 16 ground parking spaces. According to the relevant person in charge of construction, the mechanical parking garage adopts lifting and horizontal parking equipment. This kind of parking system equipment is characterized by space saving and easy access to vehicles.

The driver just parked the car in the first-floor parking space, through the operation procedure control panel, the manager can automatically transport the vehicle to the parking birth upstairs. When the vehicle is taken, the driver only needs to wait for the equipment to transport the vehicle to the ground.

At the site of the parking lot, field clearance has been completed and preparations are under way for construction. According to reports, the parking lot is scheduled for completion by the end of this year, and will effectively alleviate the difficulties surrounding parking around Swan plaza.

Underground garage is just a start, intelligent equipment, help civilized parking

Beijing Drum Tower West Avenue, the parking system is said to be the fully automated underground mechanical garage, the ground is only one out of the car hall, parking spaces all in the ground. Management through the computer to save the vehicle from the vehicle into the parking space, storage, or from the parking spaces to take out the designated vehicles, sent to and out of the car hall, the driver is waiting, no need to take the road.

When parking, the owner simply swipe the car parked at the bottom of the parking system exclusive parking spaces, you can leave. Then, the intelligent control system will automatically send the car to the nearest empty seat.

In addition, this parking system can also be achieved through the mobile phone APP online booking parking spaces and online payment functions.

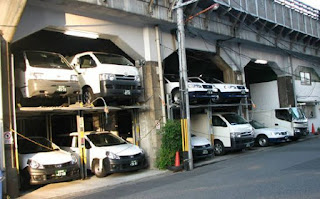

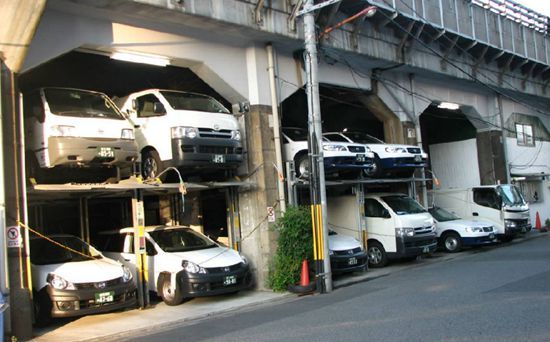

Parking system in Japan

The Parking system originated in the United States in the 20s of the last century, but the degree is higher than in the United States in Japan.

Parking system in Japan has 30-40 years of history, a small land area, population concentration and other conditions to promote the development of parking system. Japan's parking system, mostly in the form of the architectural horizontally moving parking system, also known as parking building.

Because Japan's residential area is called "regiment land". It's a large, flat place,
Such an environment facilitates the establishment of a large stereoscopic garage within a range. It looks like a large indoor parking lot in China, and the actual interior is a layer of horizontally moving parking spaces.


The horizontal parking garage in China seems to be not suitable for a wide range of applications, commercial buildings have several layers of the underground garage are enough, and there are no excess residential areas to build a parking system.

Deyang city plans to add more than 20 underground parking and parking system

In order to solve the "parking difficult" and other issues, from this year, Deyang plans to add more than 20 underground parking, parking system, and the use of existing vacant land, organs, units and other resources to increase public parking spaces.
At present, Deyang city is the use of the public parking lot about 5000, of which 80% are the temporary occupation of the city road resources, especially in the old city, due to the narrow roads, parking spaces, huge traffic, "parking difficulties" is more prominent, the traffic has also caused a certain impact.

In order to solve these problems, from this year, Deyang plans to build underground public parking lots and parking system in the city. According to the relevant person in charge, "we expect to build more than 20 public parking lots in the urban area.",
The use of existing urban land, departments and other resources to alleviate parking problems, make full use of the existing parking resources, and minimize the use of temporary road parking in the city road, now plans to 80% of the proportion dropped to 30%, the specific scheme of further planning."

With the construction of parking lot, parking management will be greatly improved, in addition to the implementation of intelligent parking guidance system, the means of payment and other aspects will be diversified, the electronic operation, then the public will enjoy more advanced parking service.

Advantages and disadvantages of parking system and common parking spaces

The advantages and disadvantages of  parking system spaces and common parking spaces are:
advantages:
1, parking system spaces: compact. Save land area. Convenient management. The vehicle is not exposed to the sun. Can prevent car exposed to wind and rain,
Have better safety protection for the car.
2, common parking spaces: convenient access. Save the parking lot. Less overhead. Low parking costs.

disadvantages :
1, parking system spaces: travel is not convenient enough. The cost of parking and management fee of the stereoscopic parking lot is high. Parking costs are high, too.
2, ordinary parking spaces: Vehicle inevitably exposed to wind and rain, by exposure of suffering. Lack of good safety protection for the car.

How to obtain parking system operation certificate?

1.The parking system is automatic, Intelligent mechanical equipment. Operation personnel of the garage must operate through the training of the manufacturer and obtain the qualification certificate, and other personnel shall not operate without authorization;
2.Parking system operators are prohibited from drinking;
3.Drivers are forbidden to drive into the garage after drinking too much;
4.Garage operators in the shift, check whether the equipment is normal, and check the garage parking spaces and vehicles are abnormal;

5.The parking system operation management personnel in the deposit should be clearly informed of matters needing attention in front of parking should comply with in terms of security, strictly abide by the relevant provisions of the garage, the garage is not in compliance with the requirements (size, weight) of the vehicles are prohibited from storage;
6.The garage operator shall inform the driver prior to the storage of the vehicle that all passengers must first get off the car and retract the antenna and confirm sufficient air pressure on the wheel.Then, according to the light box instructions, guide the driver into the garage slowly until the red light stops;

7.The car parked in the garage operation management personnel should remind the driver after correction of the front wheel, pull the handbrake, back mirror, flame out, bring your belongings, lock the door and leave as soon as possible for import and export.

Working principle of PJS Parklift System

Parking space of Parklift System is divided into upper and lower two or more than two layers,  Parklift System movement is realized by the lifting of a car parking board.

Advantages: Based on the original car, expanded to two or more than two parking spaces, each group as a unit, through the parking gear motor movement, simple structure, high safety, does not influence the lighting, low noise, suitable for residential land reform．

Disadvantages: This type of parking system requirements for land mass, underground pipeline lines, construction difficulties, increased costs, high cost of civil construction, resulting in an increase in the overall price of parking spaces．

Working principle of  Parklift System

Advantages and disadvantages of Vertical Lifting Mechanical Parking System

Vertical Lifting Mechanical Parking System: Vertical Lifting Mechanical Parking System can also be called tower type parking system.

Working principleThrough lift of elevator and traversing mechanism mounted on a hoist make carrier or car sideways, the realization of mechanical parking equipment access vehicle access to vehicles.

Advantages: the entire parking system can be as many as 20~25 layers, you can park 40~50 vehicles, covers an area of less than 50m2, the highest utilization of space. Suitable for the building at the height of the bustling city center area and parking vehicle centralized accumulation.

Disadvantages: complex equipment structure, equipped with perfect locking and monitoring system, using adequate safety measures and fire protection system, relatively high failure rate. The longest parking space usually takes 2 minutes to pick up the car, the peak time to take the car, in turn, taking the time is too long, and then take twentieth cars, about 30 minutes or more.

Suzhou province Shishan road at the end of August to achieve P+R parking lot

At the intersection of Riverside Road, Shishan Road, Riverside Road parking lot of civil air defense projects have been completed 70% of the continuous underground wall construction, is expected to be completed by the end of September 2019, with nearly 400 parking spaces. The project will be connected to Metro Line 3 Yushan Road stations so that drivers can change trains to the subway.

In addition, at the end of the first bus station Yuen Road, the construction of "laser navigation + comb exchange type parking lot, is expected by the end of August to complete the installation and commissioning.

Originally, this more than 3600 square meters of land just Yuen bus parking lot, after the transformation, the same area, in addition to the end of the first bus station, and added a seven on the ground floor, underground parking, 260 parking spaces available for the motor vehicle.


Parking System previously is used in platen automatic parking guidance system, and comb type now save a traverse equipment through the carrier and base on the cross exchange mechanism comb the position of the vehicle, safe and fast, the whole process of taking the car time average is 85 seconds.

Intelligent parking system makes parking more convenient

The new type rotary parking system has 7 stories and can park 12 cars or SUV at most, and 12 parking wheels are rotated and raised along the elliptic path by the big chain wheel.
A garage that occupies about 25 square meters, this calculation, originally only accommodates two side-by-side parking places, can accommodate 12 cars, can effectively alleviate the parking.

the rotary parking system

The double row chain is adopted in the parking system, which not only reduces the noise of the machine operation but also greatly improves the stability and safety of the garage.
The garage adds credit card mode, and as long as you swipe the card, your vehicle is locked and sent to the exit at the shortest possible distance. After many transformation and upgrading, at present, the shortest time to pick up the garage is 20 seconds.

In addition, after the garage officially put on the market, the driver can also through the mobile phone APP booking parking spaces, online payment.
"We have a lot of interested customers and will gradually push to the market." Manufacturers say.

The shortcomings of traditional parking lots, such as large space occupation and high input cost, have gradually appeared, and the market of three-dimensional and intelligent mechanical garage has great potential.

Slide Elevator and Trans Elevator Parking System

Slide Elevator Mechanical Parking System：Move a vehicle with the plane of a carrier or crane, or parking the vehicle horizontally with a parking panel on the same story.Multilayer planar movable access vehicles can also be achieved by means of a carrier and an elevator.

Advantages: generally set on the ground or semi-underground, quasi-unmanned way, the ground surface is self-propelled, not only to reduce the cost of building parking system, and the ground floor can be parked large size vehicle.
Disadvantages: equipment structure is complex, relatively high failure rate. When more than 20 cars are kept, the peak pick up time is taken too long, and the number of vehicles taken in turn is twentieth. It takes about 30 minutes or more.



Trans  Elevator  Mechanical Parking System: a mechanical parking device that uses a roadway stacker or a bridge crane to move the vehicle horizontally and vertically to the parking space and access the vehicle with the access mechanism.

Advantages: the roadway stacking type parking equipment is a kind of stereoscopic parking equipment specially designed for parking small cars in Europe after the 1960s.It is a set of machine, light, and electricity, automatic control for the whole automated parking equipment, which solves people want to solve the problem of large-scale automatic parking; closed garage, parking safety features. This kind of garage is mainly suitable for large intensive parking.
Disadvantages: complex equipment structure, equipped with perfect locking and monitoring system, using adequate safety measures and fire protection system, relatively high failure rate.
